AC Motors

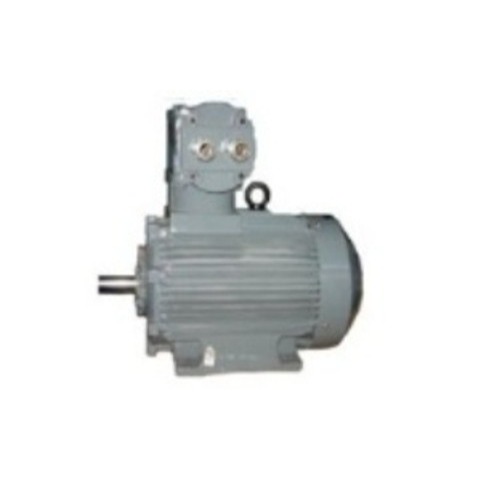

Low Voltage Motors: Flame Proof Series :-
FEATURES VALUES/ STANDARDS
• Ambient Temperature -10 to +50°C
• Altitude Not exceeding 1000mtrs above mean sea level.
• Atmosphere Corrosive & Hazardous , Zone-I , DIV; I , II , IGN TEMP – T3
• Relative Humidity Up to 100%
• Voltage 415V±10%, 3 pH.
• Frequency 50Hz ±5%
• Combined Variation 10%
• Duty S1 (continuous)
• Service factor 1.0
FEATURES VALUES/ STANDARDS
• Permissible starts/hr Cold successive – 4 , Hot successive - 3, Equally spread - 6
• Construction Foot mounted
• Loading at reduced volts 75% Rated volts for 5 minutes
• Direction of rotation Bi-directional
• No. Of leads, ST/RT 3 / 3
• Degree of protection IP 55
• Method of cooling IC 411
• Frame sizes SD 180L, SD200L , SD225M , SD250S & M, SD280S & M, SD315, SD315LX & SDX355X
• Shaft extension Single cylindrical extension as per IS 1231
• Body material Cast iron
• T.box material Cast iron up to 225 Frames, mild steel for 250 to 355 Frames
• Fan material Cast iron up to 225 Frames, mild steel for 250 to 355 Frames
• Accessories Nil
