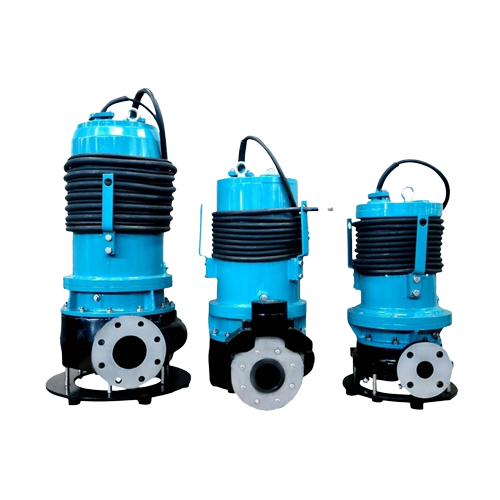

Kirloskar i-NS submersible pump is used for sewage and seepage application. i-NS submersible pumps are single stage pumps equipped with a non-clogging impeller, which allows smooth passage of solids, thus making them suitable for a wide range of applications. i-NS pumps can be offered in stationary as well as transportable arrangements. The stationary arrangement is supplied with a pump connector unit and the connector unit is connected to the pump support bracket along with a rubber diaphragm to make it a leak-proof joint. APPLICATIONS • Contaminated effluents • Industrial waste water • Storm water • Trench and tunnel water • Drain water • Saline water • Drainage water • Sewage water SPECIFICATIONS • Delivery size up to 150 mm • Capacity up to 300 m3/hr • Head up to 50 metres • Max permissible solid size up to 125 mm FEATURES • Impellers are available with two or multiple vanes in semi-open and enclosed type to be able to cater to a wide range of application areas • Permissible solid size up to 125 mm • Double mechanical seal with back to back arrangement to ensure there is no ingress of pumping liquid in the motor
