Description
Product details

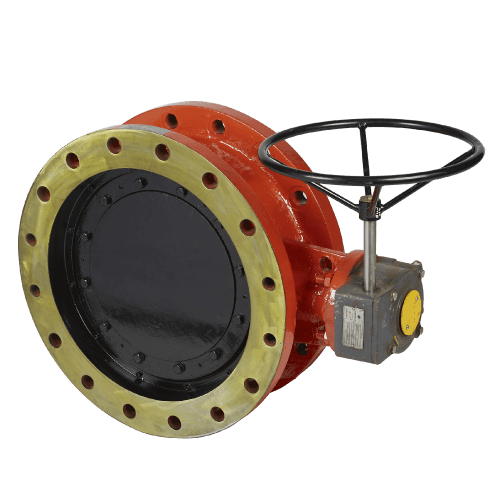

Kirloskar Eccentric Butterfly valves are widely used by municipal corporations, water supply authorities, Thermal Power Corporation, Nuclear Power Corporation and other government and industrial users. The Eccentric Butterfly valves are designed and tested as per IS: 13095/BS EN 593 (BS 5155)/BS EN 12266/AWWA C 504/AWWA C 516/IS 7326 manufacturing standards. APPLICATIONS : 1. Suitable for variety of liquids and gaseous media in water works, power plants, sewage plants, process industries and chemical and petrochemical plants for tight shut-off and control 2. Isolating and throttling services SPECIFICATIONS : 1. Size Range: 80 mm to 3800 mm 2. Material of Construction o Cast Iron/Ductile Iron/2 % NICI/DI Ni Resist (D2Ni) o Cast Steel/Fabricated Steel/Duplex Single Eccentric Butterfly Valve • Pressure Rating • IS:13095 • BS EN 593 (BS 5155) • AWWA C 504/AWWA C516 Double Eccentric Butterfly Valve • Pressure Rating • PN 0.6, PN 1.0, PN 1.6, PN 2.0 • PN 6, PN 10, PN 16, PN 20 • Class 25, 75, 150, 250 FEATURES : 1. Rigid and sturdy design with minimum loss of head across the valve 2. Eccentric seat geometry results in less wear and tear and longer life 3. Self-cleaning and non-jamming seat design 4. Combined O-Ring/U-Cup seal arrangement to prevent leakage from drive shaft end side 5. Rigid clamping ring design ensures controlled and uniform seat compression and facilitates easy replacement of seal 6. Streamlined single/double eccentrically mounted disc to ensure complete shut-off 7. Wafer/double flanged short/long valve body designed to withstand specified pressures 8. Operational mode: Hand lever/gear box
