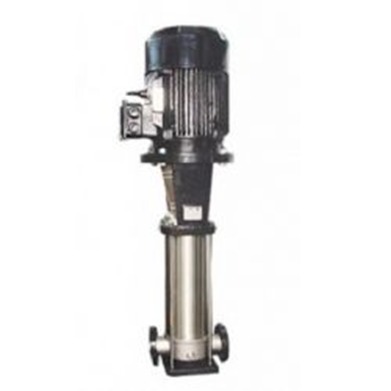

Kirloskar KCIL 10-10 Vertical Multistage Inline Pump - 1. Building Industry - Booster, Firefighting, Hydro Pneumatic Systems and Heating, Ventilation & Air Conditioning System (HVAC) 2. Water Treatment - Reverse Osmosis Systems, Softening, Ion Exchange, Demineralising Systems and Distillation Systems 3. Irrigation - Field Irrigation (Flooding), Sprinkler Irrigation and Drip-Feed Irrigation 4. Dairy, Food Processing and Beverage Industries - Supply of Clean Water 5. Small Capacity Power Plants - Boiler Feed and Condensate Transfer Technical : 1. Head Range: Up to 323 metres 2. Discharge Range: Up to 110 m³/h 3. Power Ratings: 0.37 to 45 Kw (0.5 to 60 HP) 4. Voltage Range: 370 to 440 volts (three phase) 5. Protection: IP 55 6. Insulation: F class 7. PH Range: 5 to 9 8. Altitude: Up to 1000 metres 9. Liquid Temperature Range: -20° C to 120°C 10. Motors: All motors are designed under IE2 specification. 11. Maximum Operating Pressure: 16 bar (KCIL & KSIL-1 to 5 Series) & 25 bar (KSIL & KCIL-10 to 90 Series) MATERIAL KCIL :- 1. Base plate: Cast Iron 2. Drainage plug assembly: Stainless Steel 3. Primary diffuser: Stainless Steel 4. Diffuser with bearing: Stainless Steel 5. Medium diffuser: Stainless Steel 6. Impeller: Stainless Steel 7. Final diffuser: Final diffuser 8. Motor base: Cast Iron 9. Vent plug assembly: Stainless Steel 10. Pump Shaft: Stainless Steel 11. Pump Casing (Suc & Del): Cast Iron S KSIL : 1. Base plate: Cast Iron 2. Drainage plug assembly: Stainless Steel 3. Primary diffuser: Stainless Steel 4. Diffuser with bearing: Stainless Steel 5. Medium diffuser: Stainless Steel 6. Impeller: Stainless Steel 7. Final diffuser: Final diffuser 8. Motor base: Cast Iron 9. Vent plug assembly: Stainless Steel 10. Pump Shaft: Stainless Steel 11. Pump Casing (Suc & Del): Stainless Steel Features : 1. Superior Pump Hydraulics 2. Cartridge Type Mechanical Seal 3. Splined Shaft 4. Replaceable Wearing Parts 5. Dynamically Balanced Rotating Parts 6. Easy Maintainable Design 7. Suitable for Horizontal Applications 8. High Head Applications We are Authorised Distributors of Kirloskar Diesel Generating Sets, Kirloskar Pumps MSMO Pump, Pump, Kirloskar CGL BBL Motor Dealer. Pumps, Firefighting, Firefighting Pumps ,HYPN, Kirloskar D.G. Sets, Gensets, Motors, Electric Motors, Engines, Diesel Engines, Transformers, Transformer Oil, Valves, KOEL, KEC, CGL, BBL, High Efficiency, Energy Audit, ETP, HVAC, Power Backup, Power Generation Remote Monitoring, Spares, Water Pumps, Domestic Pumps, Industry Pumps, Agriculture Pumps, Kirloskar Green, KOEL Green, Chotta Chilli, Alternators, Submersible Pumps, Energy Efficient Systems, Eterna, Solar Pumps, Air Cool Engine, Water Cool Engine, Automatic Pumps, Automatic Gensets, Portable, AC Motor, DC Motor, Butterfly Valves, NRV Sluice, Valves, Kinetic Air Valve, Foot Valves, FM UL Gate Valve, FM Approved UL Listed, Ball Valve, Triple Duty Valve, Check Valve, Ball Valve, Lubricants, Kirloskar Pumps, Kirloskar Genset ,Kirloskar DG Set, Service Pump, Service Genset, Service DG Set, Screw Air Compressor, Compressor, Reciprocating Compressor, Reciprocating Piston Air Compressor, DSA GAS Genrators, iPM Series, Heatless Air Dryer, Compressor PM Motor, 2 Stage Screw Air Compressor, Spares, Spare Parts, AMC, Annual Maintenance Contract, Corrocoat, PICO, PAT Our Office Locations :- Mumbai, Panvel, Navi Mumbai, Roha, Mahad, Tarapur, Nagpur, Amravati, Surat, Vadodara, Baroda Contact us :- +91 9653659550 Email ID :- enquiry@wrtbros.com Website :- https://wrtbros.com
